Description:

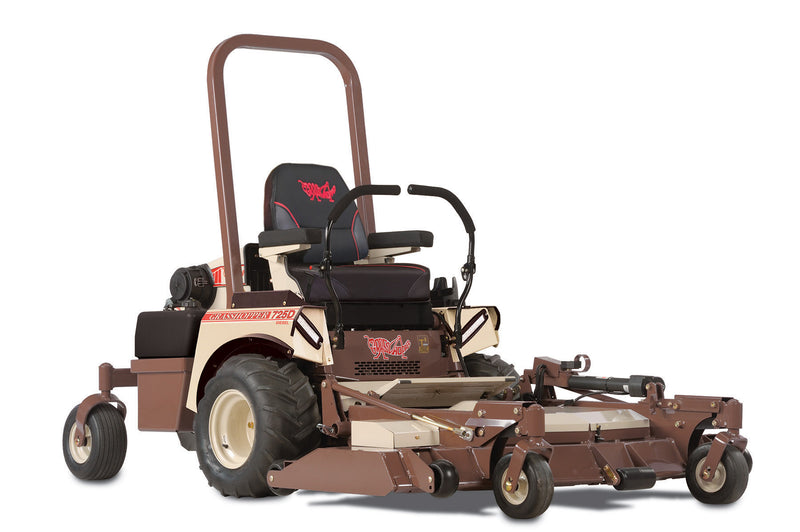

The Grasshopper Model 725DT zero-turn riding lawn mower provides the fuel economy, speed, performance, durability and versatility you need for year-round profitability to the landscape professional. This front-mount mower is powered with a fuel-efficient, Tier 4 final-compliant, MaxTorque™ diesel engine. Perform a wide range of grounds maintenance tasks with a number of implements that replace the front-mounted deck. Exclusive PowerFold® deck lift/electric height adjustment feature raises the deck to fit more on a trailer or for easy underside deck cleaning.

Features:

• T6® Drive Hydrostatic Transmission
• QuikConverter™ Implement Capability
• AntiVibe Power Platform®
• Minimal Maintenance
• Vigilant Operator Presence System™
• Kubota MaxTorque™ Diesel
• PowerFold® Electric Deck Lift
• Heavy-duty Deck
• Wide Stance Single-Fork Tail Wheel
• Built for Long Life
• LED Work Lights
• Warranty
• High Temperature Clutch Cut Out
• Ultimate Operator Station™

Specifications:

Engine

• Type: Kubota MaxTorque™, 3-Cyl.
• Displacement: 54.8 cu. in. (898 cc)
• Lubrication System: Pressure Lube/Filter
• Crankshaft: Horizontal
• Cooling System: Liquid
• Fuel: Diesel - No. 2
• Fuel Capacity: 8 U.S. Gal (30.28 l)
• Air Cleaner: Heavy-duty, remote mounted, cyclonic, dual element air filtration
• Muffler: Ultra quiet, single, industrial type

DuraMax® Decks

• Deck Type: DuraMax
• Mulching Package: #504567 (52"), #504569 (61"), #504571 (72")
• Cutting Height Range: 1.25 to 5.0 in. (3.2 cm to 12.7 cm)
• Construction: Robotic-welded steel, tubular 2.25 in. x 4 in. boxed members with 0.25 in. gussets, 7 gauge skirts
• Blades (Tempered, Alloy Steel):
• 52" Deck: (3) 18 in. (45.7 cm)
• 61" Deck: (3) 21 in. (53.3 cm)
• 72" Deck: (3) 25 in. (63.5 cm)
• Spindle Assemblies: Sentry™ Spindle System, 1 in. O.D. shaft, double bearings
• Spindle Housings: 8 in. (20.3 cm) diameter machined aluminum housing
• Blade Drive: Maintenance-free gearbox with single Kevlar V-belt and idler arm tensioning
• Trimability:
• 52" Deck: 1.0 in. (2.5 cm)
• 61" Deck: 8.5 in. (21.6 cm)
• 72" Deck: 13.75 in. (34.9 cm)

Starter & Electrical System

• Battery: 12 Volt, Maintenance-free
• Starter: Solenoid shift
• Ignition: Breakerless, diesel quick heat glow plug
• Interlock System: Prevents engine start when PTO clutch is engaged or steering levers are in drive position

Operator Station

• Seat: Iso-mounted Premium Comfort Seat, high-back, foam-padded Cordura® cover, padded arm rests, lumbar support, coil-spring suspension
• Suspension: AntiVibe PowerPlatform™ with iso-mounted seat and footrest
• Console-mounted Instruments: Low engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, digital hour meter, work lights, ignition, glow plug, and PTO switches
• Work Lights: Optional LED
• Hour Meter: Standard

Transmission & Steering

• Transmission Type: T6® hydrostatic transmission with tandem 16 cc Parker pumps, CoolFan™ for cooling efficiency
• Hydro Fluid Filtration: High-efficiency, fine-particle filter
• Speed:
• Forward: 0 - 10.0 mph (0 - 16.1 kph)
• Reverse: 0 - 6.0 mph (0 - 9.7 kph)
• Turning Radius: True zero-degree, turns within own length
• Steering: One- or two-hand operation with adjustable HydraSmooth™ QuikAjust Tilt™ dual levers
• Brakes: Dynamic braking through hydrostatic transmission, Disc parking brakes

Tire Sizes

• MidMount Drive Wheels (Standard):
• 4-ply rated
• FrontMount Drive Wheels (Standard):
• 22x11.00x10 bar tread, high flotation, 4-ply rated
• FrontMount Drive Wheels (Optional):
• 22 x 11.00-10 turf tread, 4-ply rated
• 22 x 11-12 Michelin® X® Tweel® airless turf tread

Dimensions

• Height (Seat Back): 46.0 in. (116.8 cm)
• Height (Seat Cushion): 30.5 in. (77.5 cm)
• Height (ROPS): 69.0 in. (175.3 cm)
• Length (Frontmount w/ DuraMax® Deck - Mowing Position):
• 52" Deck: 105.5 in. (268.0 cm)
• 61" Deck: 107.5 in. (273.0 cm)
• 72" Deck: 117.5 in. (298.5 cm)
• Length (Frontmount Power Unit + DuraMax® Deck - Folded Up):
• 52" Deck: 88.5 in. (224.8 cm)
• 61" Deck: 91.0 in. (231.1 cm)
• 72" Deck: 104.0 in. (264.2 cm)
• Deck Width (Side Discharge):
• 52" Deck: 65.5 in. (166.5 cm)
• 61" Deck: 74.5 in. (189.2 cm)
• 72" Deck: 85.5 in. (227.3 cm)
• Deck Width (Mulch):
• 52" Deck: 53.5 in. (135.9 cm)
• 61" Deck: 62.5 in. (158.8 cm)
• 72" Deck: 73.5 in. (186.7 cm)
• Weight (Uncrated):
• 52" Deck: 1370 lbs. (621.4 kg)
• 61" Deck: 1420 lbs. (644.1 kg)
• 72" Deck: 1545 lbs. (700.8 kg)
• Weight (FrontMount Power Unit Only, Uncrated): 1000 lbs. (453.6 kg)
