Description

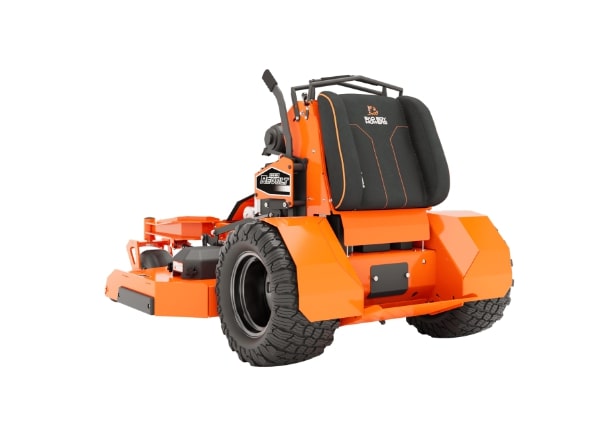

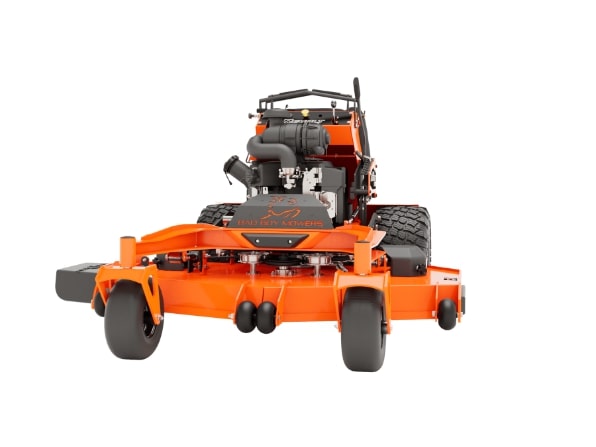

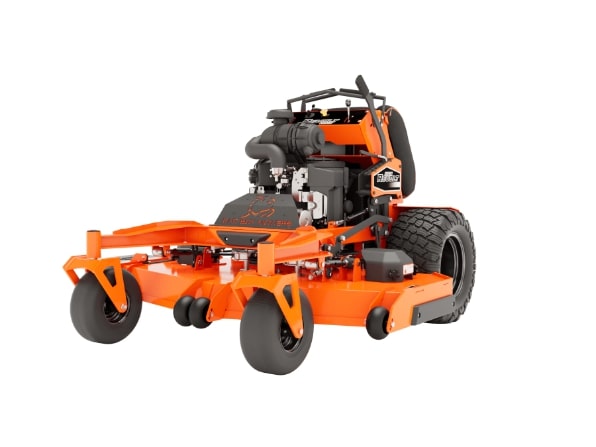

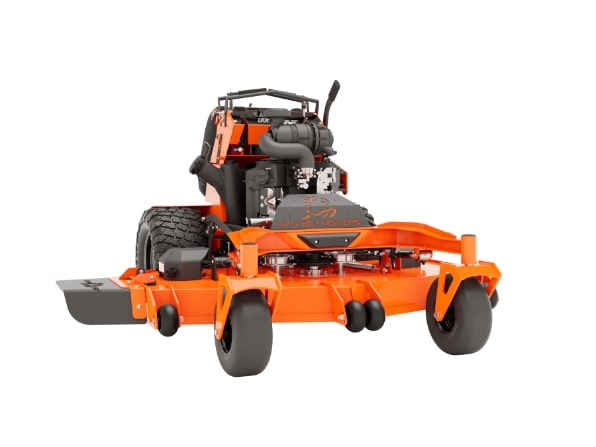

The Revolt Stand-On Zero-Turn Mower is made in America at our Batesville, Arkansas headquarters. And this Bad Boy is engineered for improved performance and usability in every way. It sports a shorter frame and curved I-Beam front fork support, which offers greater visibility, plus larger rear tires and no-flat front tires for more stability and traction. The compact design can get you into even tighter spaces, thanks to smaller 36˝ or 48˝ deck cutting widths. Plus Revolt boasts a lower center of gravity, making it one of the most maneuverable and balanced stand-on mowers you can buy. It even comes with a striping kit.

Features:

• Engine Options: Kawasaki & Vanguard
• Available Deck Sizes: 36", 48", 54" & 61"
• 3/16˝or 7-Gauge All Steel, Formed and Welded Deck with Reinforced Edges
• Curved I-Beam Front Rail
• Quick Access Panel for Drive and Belt Maintenance
• Dual Hydro-Gear Performance Integrated Drive Systems
• 3/8˝ Steel Front Forks and 3 1/2˝ Trail for Smooth Directional Change
• Improved Variable Deck Lift Adjustment
• Removable Quick Access Panel for Maintaining Battery, Control Arm and Hydro-Tanks
• Adjustable Rubber Suspension Riding Platform
• PEER, Maintenance-Free Spindles
• Three-Position Speed Control
• Electric PTO
• Ergonomic Thigh Pad
• No-Flat Front Tires
• Striping Kit

Specification:

• Engine Brand:
• Kawasaki
• Engine Model:
• FX781V EVO EFI
• Engine Displacement:
• 822cc
• Horsepower:
• 31 HP
• Cooling System:
• Air-Cooled
• Fuel System:
• Electronic Fuel Injection (EFI)
• Fuel Type:
• Unleaded Gasoline
• Fuel Capacity:
• 6.5 gallons
• Cutting Width:
• 61"
• Deck Thickness:
• 3/16" or 7-Gauge Thick Solid Steel
• Cutting Height:
• 2" - 5" (with Deck Height Control System)
• Lift & Height Adjustment:
• Manual Lift
• Transmission:
• Hydro-Gear® 3400 (12cc Integrated Transaxle)
• Ground Speed (Forward):
• Up to 9 mph
• Rear Tires:
• 23 x 11-12 Reaper®
• Front Tires:
• 13 x 6.5-6 Smooth
• Chute Width (Up/Down):
• 63.5" / 75.5"
• Height / Length:
• 48" / 63"
• Curb Weight:
• 1,040 lbs
