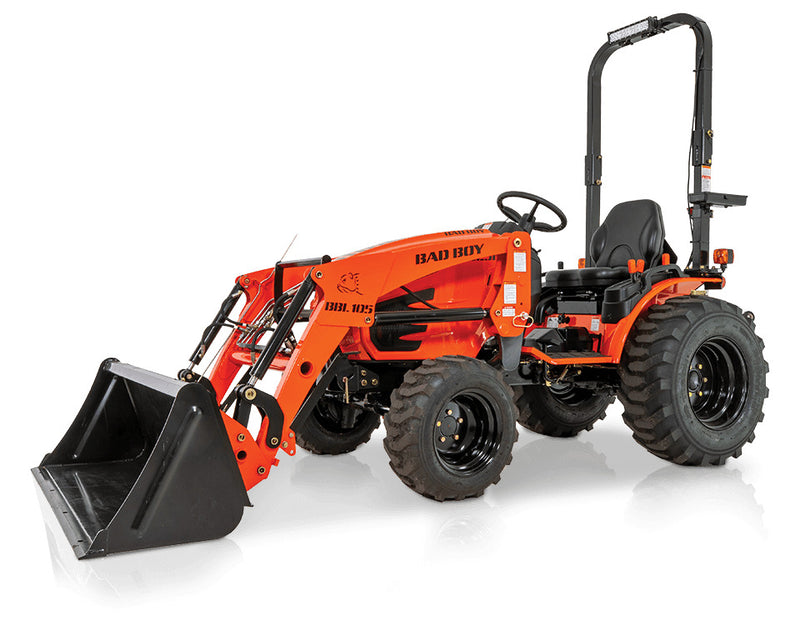

Description:

FEATURING:

• 25 HORSEPOWER
• 992 LBS. LOADER LIFT CAPACITY AT PINS
• HYDRO MAX TRANSMISSION
• DUAL HST PEDALS
• 2 RANGE TRANSMISSION
• INDEPENDENT PTO
• POWER STEERING
• SELECTABLE 4WD
• DIFFIRENTIAL LOCK
• 7 YEAR POWERTRAIN WARRANTY

Specification:

1025 ENGINE:

• Engine Type: 3 Cylinder, Water-Cooled, Diesel
• Engine HP @ RPM: 24.6
• Displacement (in³): 77.3
• Number of Cylinders: 3
• Fuel Tank Capacity (gal.): 5.8

1025 DRIVETRAIN:

• Transmission: HST (Hydrostatic Transmission)
• Number of Speeds: 2 Range
• Clutch: No
• Brakes: Wet, Multi-Disc

1025 HYDRAULICS:

• Hydraulic Type: Power Assisted Hydro-Static
• Total Hydraulic Flow (Power Steering + Implement): 7.0 gpm (2.8 + 4.2) / 25.7 lpm (10.5 + 15.8)
• 3-Point Hitch: Cat 1
• 3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends (lbs.): 450

1025 DIMENSIONS:

• Overall Length: 104"
• Overall Width: 45.8"
• Overall Height: 91.3"
• Wheelbase: 57.5"
• Minimum Ground Clearance: 9.4"
• Weight: 1,638 lbs.

1025 PTO:

• PTO Type: Independent
• Rear (Mid) PTO Speed: 540 RPM
• PTO HP: 18.8

1025 ELECTRICAL:

• Battery: 12 V, 500 CCA
• Alternator: 12 V, 40 A

1025 WHEELS & TIRES:

• Ind (Front) Tires: 23X8.50-12
• Ind (Rear) Tires: 12-16.5

1025 LOADER - MODEL BBL105:

• Standard Bucket Size (in.): 50
• Maximum Lift Height (in.): 75.5
• Dig Depth (in.): 4.6
• Lift Capacity to Full Height at Pivot Pin (lbs.): 992
• Breakout Force (lbs.): 1,531
• Shipping Weight (lbs.): 573

1025 BACKHOE - MODEL BBH105:

• Standard Bucket Size (in.): 12
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth (in.): 76
• Dig Force Bucket (lbs.): 2,020
• Shipping Weight (lbs.): 816
