Description:

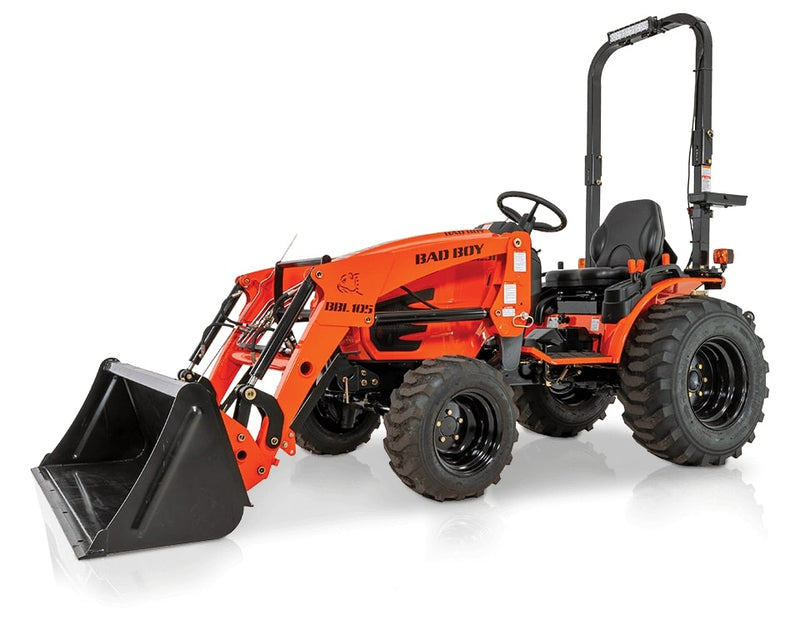

Although the Bad Boy 1025 Sub-Compact Tractor is smaller in size, it's big on power. This sub-compact tractor can squeeze into barn stalls, through gates and into tight spaces where bigger tractors just won't fit. But it still has the strength to get any job done. It's driven by a powerful 25-horsepower engine. Plus it features the same Hydro Max Transmission as our bigger Bad Boy Tractors, giving you the power to automatically increase engine RPMs evenly with the push of a pedal. This 2-range transmission can be set to low for work and high for transport. So if you're a small landowner and need a do-it all tractor, the Bad Boy 1025 is ready to outperform anything in its class, at a price that's even tougher to beat.

Features:

• 25 Horsepower
• 992 lbs. Loader Lift Capacity At Pins
• Hydro Max Transmission
• Dual HST Pedals
• 2 Range Transmission
• Additional Features:
• Independent PTO
• Power Steering
• Selectable 4wd
• Diffirential lock
• 7 Year Powertrain Warranty

Specifications:

Engine

• Type: 3 Cylinder, Water-Cooled, Diesel
• Horsepower: 24.6 HP @ rated RPM
• Displacement: 77.3 in³
• Number of Cylinders: 3
• Fuel Tank Capacity: 5.8 gallons

Drivetrain

• Transmission: HST (Hydrostatic Transmission)
• Number of Speeds: 2 Range
• Clutch: No
• Brakes: Wet, Multi-Disc

Hydraulics

• System Type: Power Assisted Hydro-Static
• Total Hydraulic Flow: 7.0 GPM (2.8 GPM steering + 4.2 GPM implement)
• 3-Point Hitch: Category 1
• Rear Remote Valve: Not Available
• Lift Capacity @ 24" Behind Lift Point: 1,101 lbs

Dimensions

• Overall Length: 104"
• Overall Width: 45.8"
• Overall Height: 91.3"
• Wheelbase: 57.5"
• Minimum Ground Clearance: 9.4"
• Weight: 1,638 lbs

PTO

• Type: Independent
• Speed: 540 RPM (Rear/Mid)
• PTO Horsepower: 18.8 HP

Electrical

• Battery: 12 V, 500 CCA
• Alternator: 12 V, 40 A

Wheels & Tires

• Front (IND): 23x8.50-12
• Rear (IND): 12-16.5

Loader - Model BBL105

• Standard Bucket Size: 50"
• Maximum Lift Height: 75.5"
• Dig Depth: 4.6"
• Lift Capacity at Full Height (Pivot Pin): 992 lbs
• Breakout Force: 1,531 lbs
• Shipping Weight: 573 lbs

Backhoe - Model BBH105

• Bucket Size: 12"
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth: 76"
• Dig Force (Bucket): 2,020 lbs
• Shipping Weight: 816 lbs
