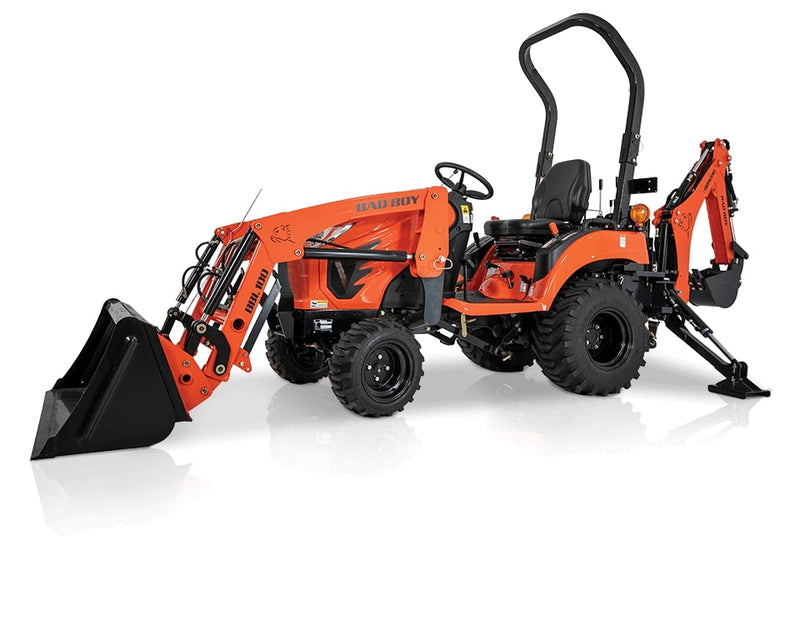

Description:

Features:

• Featuring:
• 22 Horsepower
• 617 lbs. Loader Lift Capacity At Pins
• Hydro Max Transmission
• Treadle Style HST Pedals
• Reverse Mount Engine
• 2 Range Transmission
• Independent PTO
• Power Steering
• Selectable 4wd
• Diffirential lock
• 7 Year Powertrain Warranty

Specifications:

• Engine:
• Type: 3 Cylinder, Water-Cooled, Diesel
• Engine HP @ RPM: 21.5 HP
• Displacement: 60.6 cubic inches
• Number of Cylinders: 3
• Fuel Tank Capacity: 6.6 gallons
• Drivetrain:
• Transmission: HST (Hydrostatic Transmission)
• Number of Speeds: 2 Range
• Clutch: Dry Single Plate
• Brakes: Wet, Multi-Disc
• Hydraulics:
• Type: Power Assisted Hydro-Static
• Total Hydraulic Flow (Power Steering + Implement):
• 6.3 GPM (2.1 + 4.2)
• 23.8 GPM (8 + 15.8)
• 3-Point Hitch: Limited Category 1
• Rear Remote Valve: Optional (Up to 1)
• 3-Point Hitch Lift Capacity @ 24" Behind Lift Point: 679 lbs
• Dimensions:
• Overall Length: 94.2 inches
• Overall Width: 44.5 inches
• Overall Height: 86.6 inches
• Wheelbase: 53.1 inches
• Minimum Ground Clearance: 8.3 inches
• Weight: 1,433 lbs
• PTO (Power Take-Off):
• Type: Independent
• Rear (Mid) PTO Speed: 540 RPM
• PTO HP: 15.4 HP
• Electrical:
• Battery: 12 V, 500 CCA
• Alternator: 12 V, 40 A
• Wheels & Tires:
• Front Tires: 18x8.50-10 (IND)
• Rear Tires: 26x12-12 (IND)
• Loader - Model BBL100:
• Standard Bucket Size: 48 inches
• Maximum Lift Height: 72.7 inches
• Dig Depth: 4.0 inches
• Lift Capacity to Full Height at Pivot Pin: 617 lbs
• Breakout Force: 1,253 lbs
• Shipping Weight: 438 lbs
• Backhoe - Model BBH100:
• Standard Bucket Size: 12 inches
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth: 66 inches
• Dig Force (Bucket): 1,975 lbs
• Shipping Weight: 747 lbs
