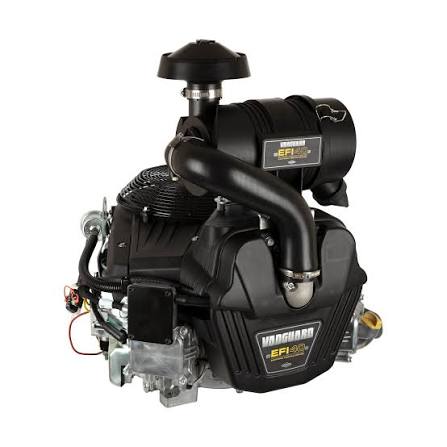

61G877-0014-J1 Engine Briggs & Stratton Vanguard EFI 40 HP

New Genuine Briggs & Stratton Vanguard EFI 40 HP Vertical Engine

Model/MPN: 61G877-0014-J1 (Engine Spec: 61G877J / AQ0001)

Get ultimate commercial-grade performance with this brand-new, original Briggs & Stratton Vanguard Electronic Fuel Injection (EFI) 40 Gross HP Vertical Shaft Engine. This powerhouse is engineered to handle the absolute most demanding commercial applications, famously serving as the factory OEM replacement engine for top-tier zero-turn commercial mowers and heavy industrial outdoor power equipment.

Featuring a robust 993cc V-Twin displacement block combined with an advanced closed-loop EFI system, it delivers maximum fuel efficiency, faster load recovery, and instant chokeless cold starts.

⚠️ Important Supersession Note: This exact OEM engine directly replaces and supersedes older factory specifications including 61G877-0001-J1 and 61G877-0003-J1.

📋 Full Technical Specifications

• Engine Brand: Briggs & Stratton Vanguard®

• Model Number / Specification: 61G877-0014-J1 / 61G877J AQ0001

• Horsepower: 40.0 Gross HP

• Displacement: 993 cc

• Cylinder Configuration: V-Twin

• Shaft Orientation: Vertical

• Crankshaft Dimensions: 1-1/8" Diameter $\times$ 4-1/2" Length

• Crankshaft End Tapped: 7/16-20

• Crankshaft Keyway: 1/4" Square

• Fuel System: Electronic Fuel Injection (EFI)

• Starter Type: Heavy-Duty Electric Start

• Charging System: 20 Amp DC Alternator charging coil

• Air Cleaner: Heavy-duty Cyclonic Industrial Filtration

• Oil Capacity: 80 fl oz (2.5 Quarts) full-pressure lubrication system

• Maximum RPM: 3600 RPM

💎 Key Engineering & Efficiency Features

• Closed-Loop Electronic Fuel Injection (EFI): Dynamically optimizes fuel delivery based on engine load, delivering up to 25% better fuel economy compared to traditional carbureted setups.

• Cyclonic Multi-Stage Air Filtration: Designed specifically for ultra-dusty mowing environments, providing superior engine protection by filtering out fine particles before they reach the main element.

• Heavy Cast-Iron Flywheel & Blocks: Features an increased cylinder block structure for added thermal stabilization, maintaining smooth power and engine speed when chewing through thick brush.

• High-Output 20-Amp Alternator: Provides more than enough electrical juice to power electric PTO clutches, lighting packages, and onboard electronics.

🚜 Equipment Fitment & Compatibility

This vertical shaft V-Twin layout drops seamlessly into large commercial zero-turn mowers featuring standard vertical engine decks. It is commonly used as the replacement powertrain for premier commercial mowers, including high-end Bad Boy Mowers, Scag, Hustler, and Ferris heavy-duty configurations.

Always cross-reference your original engine's model, type, and trim specifications to guarantee a perfect drop-in wiring harness and shaft height alignment.

📦 Shipping & Freight Logistics

• Condition: Brand New, uninstalled, in original factory industrial box.

• Shipping Notice: This item is heavy and ships via Motor Freight on a secure wooden pallet.

• Delivery Requirements: The freight carrier will contact you via your provided contact number to arrange a delivery window. Please specify if you require a liftgate service at check-out.

• Warranty: Includes a comprehensive 3-Year Limited Commercial Warranty backed nationwide by Briggs & Stratton service centers.
