PA-KT740-3048 - Engine 7000 VTwin 25HP
KT740 E16 BAD BOY

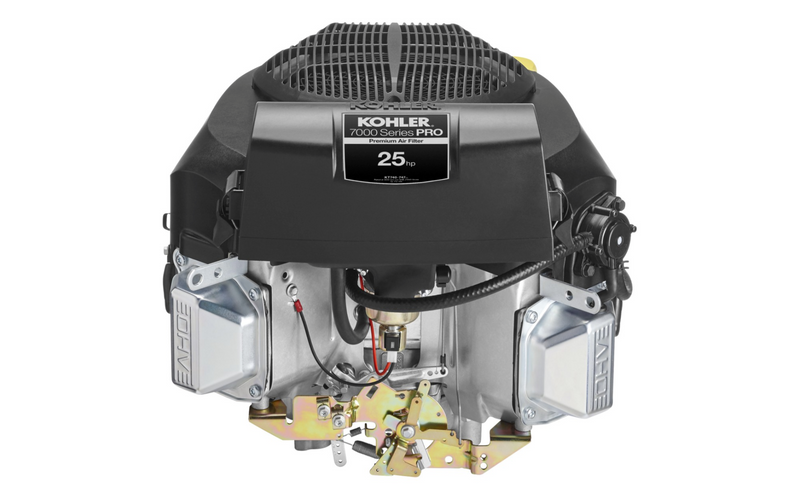

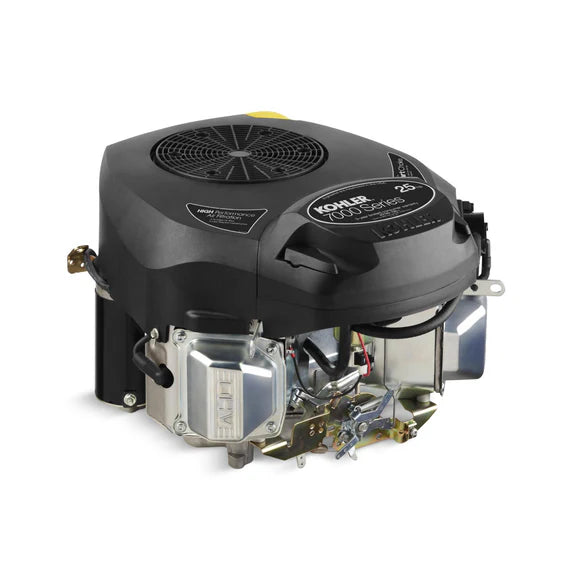

New Kohler 7000 Series 25 HP V-Twin Engine
Part # PA-KT740-3048
Upgrade or replace your mower's power plant with a brand new, original equipment Kohler 7000 Series 25 HP engine. Built with premium commercial-grade features for heavy residential and light commercial use, this 725cc vertical-shaft V-twin engine delivers smooth, high-torque power.
This specific build sequence (Spec KT740-3048, also cataloged as the E16 or E09 Bad Boy Spec) is engineered as a direct drop-in factory replacement primarily for Bad Boy Zero-Turn Mowers.
⚙️ Full Mechanical Specifications:
-
Model/Spec Number: PA-KT740-3048 (Directly replaces older spec KT740-3029)
-
Power Output: 25 Gross HP / 725cc Displacement
-
Crankshaft Size: 1" Diameter x 3-5/32" (3.16") Length
-
Crankshaft Details: Vertical shaft, 7/16"-20 tapped end, 1/4" full keyway
-
Starter: High-torque Bendix Drive Electric Start (12V)
-
Alternator System: 15 Amp charging system
-
Lubrication: Full pressure lubrication with spin-on oil filter
-
Bore & Cylinder: Durable Cast Iron Cylinder Liners
🚜 Verified Bad Boy Mower Compatibility:
This engine serves as the factory-installed unit on several popular zero-turn lines utilizing the 25HP Kohler platform, including:
-
Bad Boy MZ Series
-
Bad Boy MZ Magnum
-
Bad Boy ZT Avenger
-
Can also fit select Troy-Bilt, Ariens, or MTD applications requiring the identical 1" x 3-5/32" crankshaft profile.
⚠️ Critical Buyer Checklists (Read Before Buying!)
1. Controls Configuration: This spec uses a Dual Remote Control setup (meaning your mower must have two separate dash control levers—one for the throttle and a completely separate cable for the manual choke lever).
2. Exhaust / Muffler: Exhaust manifolds/mufflers are NOT included from the Kohler factory with replacement engines. You will simply transfer your mower's existing muffler assembly onto the new engine block using the new gaskets provided in the box.
3. Shipping Regulations: Due to strict local environmental emission laws, this specific gas engine cannot be shipped to California.
📦 What is Inside the Factory Box?
-
1x Brand New, Unused Kohler PA-KT740-3048 Engine
-
1x Official Kohler Owner’s / Service Manual
-
Fresh Factory Exhaust Gaskets
🚀 Premium Shipping & Service
-
Secure Freight Crate Packaging: This 100+ lb package is securely strapped down to protect the vertical crankshaft, flywheels, and aluminum casing from freight damage.
-
Fast Dispatch: We process shipments quickly to get your mower off the blocks and back out on the turf!
Still completely unsure if this is the exact match for your Bad Boy mower model? Send us a direct message with your mower's serial number and the spec number on your old engine's barcode decal. We will gladly run a database cross-reference check for you!
