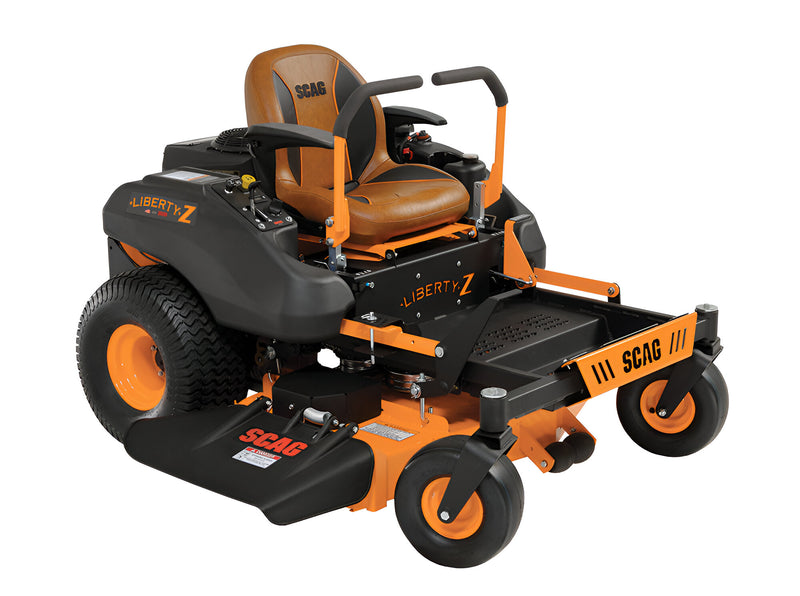

Scag Zero-Turn Riding Mowers SZL42H22PX
Description:
Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
Features:
SOLID, FORGED ROTOR:
A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
HIGH-TEMPERATURE, LONG-LIFE GREASE:
All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.
ADJUSTABLE AIR GAP:
When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.
Specifications:
Total Fuel Capacity
- 36" and 42" Models: 3.5 gallons
- 48", 52", and 61" Models: 5.5 gallons
Drive Tires
- 36" Model: 20" x 8"-10"
- 42", 48", and 52" Models: 20" x 10"-8"
- 61" Model: 20" x 10"-10"
Caster Tires
- 36" and 42" Models: 11" x 4"-5"
- 48", 52", and 61" Models: 11" x 6"-5"
Seat
- 48", 52", and 61" Models: Padded with arm rests, adjustment forward and back (tools required)
- 36" and 42" Models: Optional armrest kit is available
Drive System
Drive System Type
- 36" and 42" Models: Hydro-Gear ZT-2800 Transaxle
- 48" and 52" Models: Tuff Torq TZ450 Transaxle
- 61" Models: Hydro-Gear ZT3100 Transaxle
Pumps
- Internal Pump: 10 cc
Motors
- Internal Motor: 10cc (Tuff Torq)
- Internal Motor: 16 cc (Hydro-Gear)
Forward Ground Speed
- 7 mph
Reverse Ground Speed
- 5 mph
Parking Brake
- Hand lever
Deck
Cutting Widths
- 36", 42", 48", 52", and 61"
Type
- Heavy-Duty Hero Cutter Deck
Cutting Height
- 1.5" to 4.5" in .25" increments
Deck Lift
- Foot-operated pedal
Construction
- Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles
- Aluminum housing with sealed ball bearings
Blade Engagement
- Ogura GT1 (74 ft lb) – (36", 42", 48", and 52" Models)
- Ogura GT2 (108 ft lb) – (61" Model)
- Adjustable air-gap for extended life
