Description:

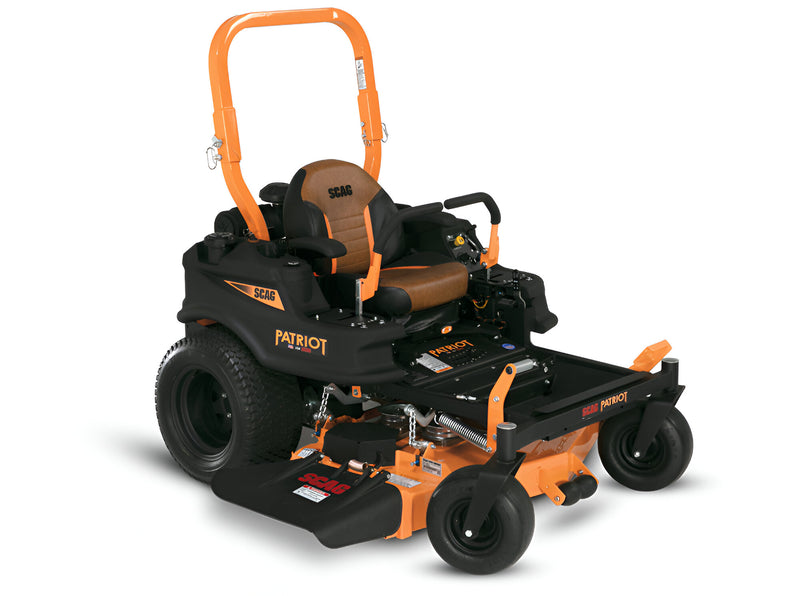

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

Features:

• SOLID, FORGED ROTOR: A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
• HIGH-TEMPERATURE, LONG-LIFE GREASE: All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.
• ADJUSTABLE AIR GAP: When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

General:

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 22" x 10.5"-12" (52") and 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6"

Seat and Suspension:

• Seat: Torsion-spring suspension seat

Drive System:

• Drive System Type: Hydro-Gear ZT3100 Transaxle (52") and Hydro-Gear ZT3400 Transaxle (61")
• Pumps: ZT3100 Internal Pump: 10 cc (52") and ZT3400 Internal Pump: 12 cc (61")
• Motors: Internal Motor: 16 cc

Performance:

• Forward Ground Speed: 8.5 mph (52") and 10 mph (61")
• Reverse Ground Speed: 5 mph

Braking:

• Parking Brake: Foot-operated pedal

Deck:

• Cutting Widths: 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 5" in .25" increments
• Deck Lift: Foot-operated pedal

Construction:

• Deck Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.

Blade Engagement:

• Blade Engagement: Ogura GT2 (108 ft lb) Adjustable air-gap for extended life.
