Description:

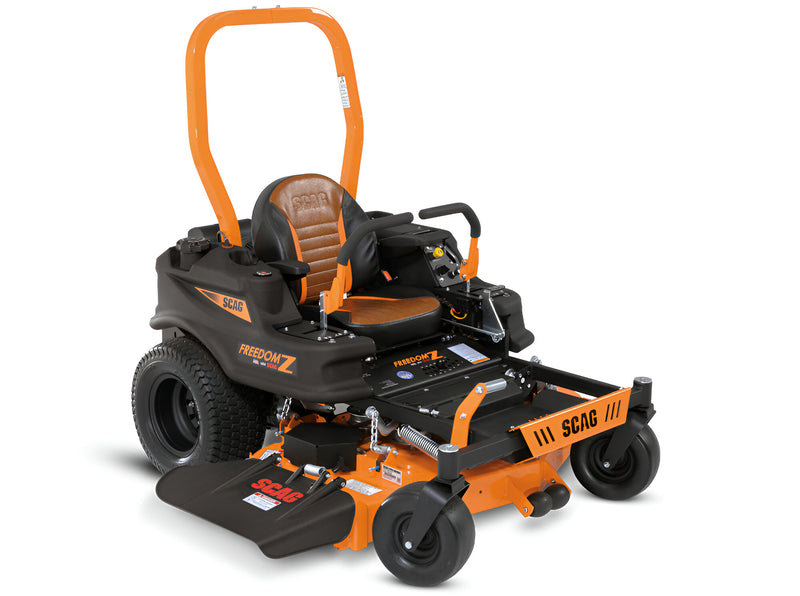

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

Features:

SOLID, FORGED ROTOR:

A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.

HIGH-TEMPERATURE, LONG-LIFE GREASE:

All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.

ADJUSTABLE AIR GAP:

When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

General

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)

Drive System

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

Deck

• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal

Construction

• Deck Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.

Blade Engagement

• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable air-gap for extended life.
