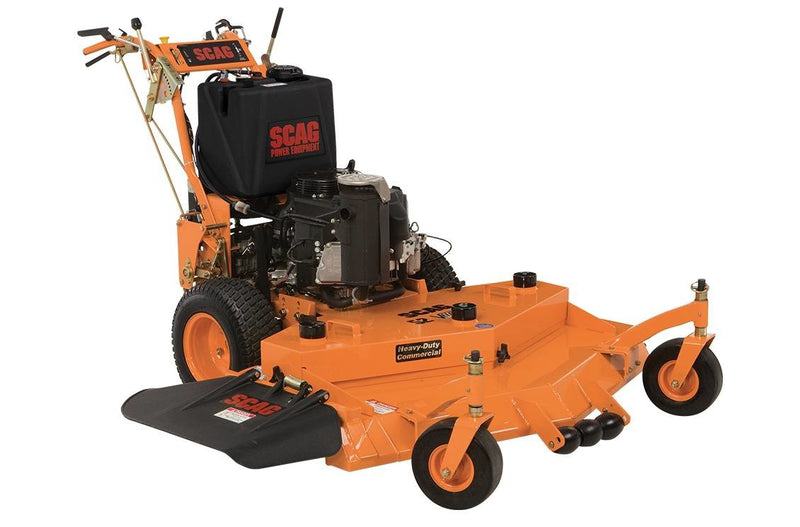

Scag SWZL61V-22FSE Walk Behind

Description:

61" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 651FSE

FEATURES

• Heavy-Duty Drive System: Speeds Up To 7.4 MPH: Hydraulic drive system includes dual 10 cc Hydro-Gear pumps and 12 ci Parker hydraulic motors.
• Adjust-A-Trac: Straight Ahead: Adjust-A-Trac tool is conveniently mounted on the engine deck for quick and easy neutral and tracking adjustments in the field.
• Proven "Pistol" Grips: EZ-Grip Design: Spring-assisted EZ-Grip design reduces hand force required to operate drive controls for maximum operator comfort and simple machine operation.
• Adjustable Handlebars: 3 Positions to Accommodate All Operators: Handlebars adjust to three (3) different positions to enhance operator comfort.
• Heavy-Duty Construction: Solid Design for Years of Dependable Service: Full commercial-grade construction ensures years of productive use.
• Ogura PTO Clutch Brake: Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Velocity Plus Cutter Decks: 36", 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks (48", 52" and 61" widths) deliver an amazing quality-of-cut and a wide, even discharge. A 36" Advantage Cutter Deck option is also available.
• Ease of Maintenance: More Uptime: Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZ simple, so you can be in the shop less and on the job more.
• Powerful and Efficient Engine Options: Reliable Power, Up To 22 HP: Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.

SPECIFICATIONS

• Description: 61" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 651FSE
• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 16" x 6.5"-8"
• Caster Tires: 9" x 3.5"
• Seat: n/a
• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear: 10 cc
• Motors: Parker 11 ci
• Forward Ground Speed: 7.4 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 48", 52" and 61"
• Type: Advantage (36"); Velocity Plus™ (48", 52", and 61")
• Cutting Height: 1.75" to 4.5" in .25" increments
• Deck Lift: Adjustable via spacers
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT-EXM3X (110 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 78"
• Width (chute down): 73.5"
• Width (chute in transport position): 62"
• Weight: 717 lb

ACCESSORIES

• Fabric Bag Grass Catcher
• Hurricane Plus™ Mulch System
• Mulch Plate
• Chrome Wheel Covers
• Blade Buddy
• Turbo Baffle
