Description:

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

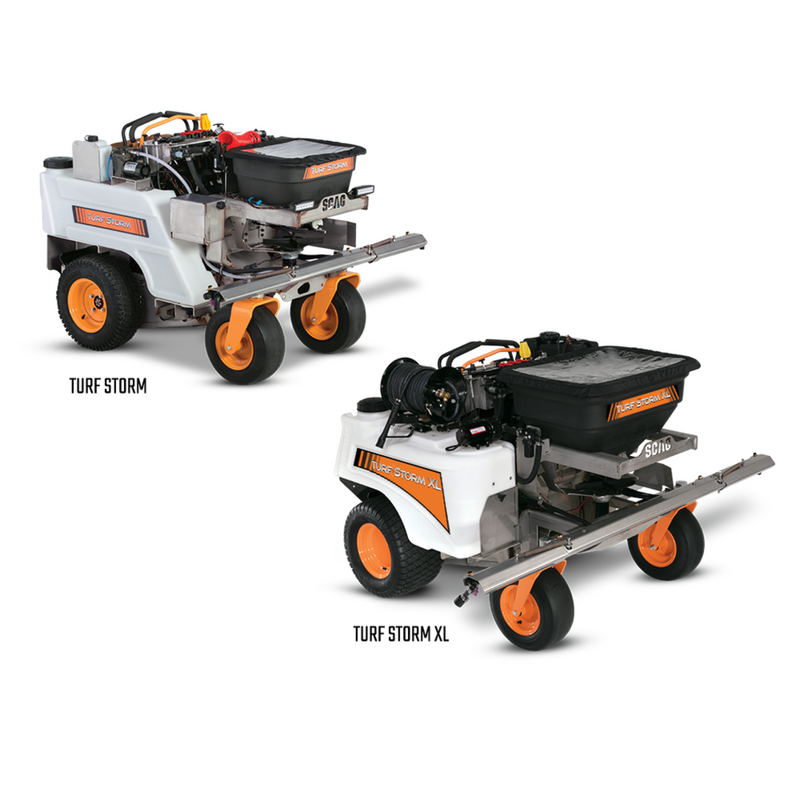

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features:

Dual Liquid Tanks

• Capacity: Turf Storm XL has a 60-gallon capacity, while Turf Storm has a 30-gallon capacity.
• Measurement Indicators: Highly translucent tanks with raised indicators for accurate fill levels.
• Spray Booms: Turf Storm XL features 8-feet-wide booms with five nozzles, allowing for spraying widths of 2, 6, 8, or 10 feet. Turf Storm has a 65-inch wide spray boom, offering spraying widths of 2, 6, or 8 feet.
• Hose Reel: Turf Storm XL includes a 75-foot hose reel, while Turf Storm has a 15-foot flex hose, enabling access to tough spaces.

Spread up to 25 Feet

• Hopper Capacity: Turf Storm XL has a 220-pound dry/granular capacity, and Turf Storm has a 120-pound capacity.
• Spreader Motor: High-torque electric spreader motor facilitates up to a 25-foot spread width.

Wide Stance for Optimum Maneuverability and Stability

• Dynamically Balanced: Ensures stable footing without the need for locking front casters (Turf Storm XL only).

Ease of Use and Maintenance

• Drain Plug: Quick and efficient drain plugs at the lowest part of the tanks for easy draining and cleaning.

More Accurate Application Pattern

• Spreader Motor: High-torque electric motor reduces system heat, allowing for more precise control and accurate application.

Finger Tip Controls

• Operator Control Station: Ergonomic design with drive control lever for intuitive operation; all controls within easy reach.

Maximize Comfort

• Operator Platform: Spacious platform with extra-large comfort cushion and coil-spring suspension for a smooth ride.

23hp Vanguard Engine

• Power: 23 horsepower Briggs Vanguard® engine provides ample power, efficiency, and reliable performance.
• Charging System: 50-amp system ensures dependable operation of accessories like pumps, lights, and foam markers.

Easy Access

• Maintenance: Removable cushion and open lower area facilitate quick access to hydro drive pumps, reservoir, and mechanical components for easy servicing.

Specification:

Engine

• Engine: Briggs Vanguard™
• Horsepower: 23 hp
• Charging System: 12 Volt, 50 Amp

Fuel Capacity

• Total Fuel Capacity: 4.5 gallons

Wheels

• Front Wheel(s): 16″ x 6.5″-8″, pneumatic
• Rear Wheels: 20″ x 7″-10″, 4-ply

Currently Available Accessories

• Foamer Kit
• LED Light Kit
• 7 GPM pump

Drive System

• Drive System: Dual Pump and Motor
• Pumps: Hydro-Gear: PG Series 10 cc
• Motors: Parker TG Series: 14.5ci

Performance

• Ground Speed:
• Up to 8.5 MPH forward
• Up to 5 MPH reverse
• Parking Brake: Hand Lever

Dimensions

• Length: 65″
• Width (spray booms in): 35.5″
• Width (spray booms out): 65″
• Height: 50″

Weight

• Dry Weight: 859 lb

Warranty

• Warranty: 2-Year Commercial & Non-Commercial Warranty; 90-day Rental
