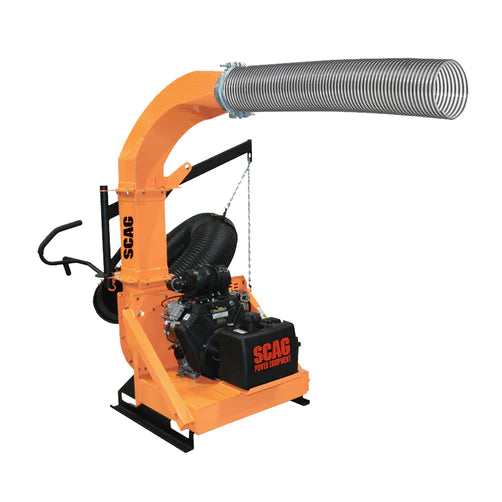

SCAG Skid-Mount Truck Loader TLS20W-29BV

Scag’s Industrial Skid-Mount Truck Loader features four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed. High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork. 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design. Powered by a 29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start. 1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates. Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning. 12" Steel Intake Nozzle is beveled to make debris pickup easy. Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

Features

• Powerful 29 hp Vanguard commercial-grade engine with heavy-duty air filtration system for extended engine life
• Heavy-duty welded steel engine platform / skid mount for long, reliable unit life
• 3/8" thick , 4-blade, welded steel impeller, dynamically balanced, high-CFM, debris reducing design
• Tapered impeller hub standard
• 10 gauge welded steel blower housing
• 1/4", serviceable, steel blower housing wear plates are standard equipment
• 12" diameter intake hose, .045 black thermoplastic rubber, wire helix with wearstrip. Length 120".
• Quick-detach feature allows the intake hose to be removed from the blower housing for storage, transport or cleaning. No tools required.
• 16 gauge, angle-cut intake nozzle with 7-gauge reinforcement plate at handle mount
• Ergonomic, ambidextrous, one or two-handed intake handle with thick, comfort foam grip
• Easy rear access to the impeller and the wear plates for cleaning and servicing
• All steel, welded boom arm features Igis bearing for smooth movement
• Boom features a transport position with spring-loaded locking pin that keeps the boom secure during transport
• Hose support chain is easily height adjustable, without tools, for quick hose height changes
• Intake nozzle can easily be secured to the trailer for transport with an innovative transport pin system
• 5.5 gallon fuel tank with built-in fuel gauge
• 8" discharge tube for better debris dispersal; heavy-duty clamp secures the flexible discharge pipe to the loader
• Remote engine oil drain for easy and clean maintenance
• Optional Truck Loader Halogen light kit available (part number: 9602)
• 50 state emissions compliant

Specifications

Fuel Capacity / Tank5.5 gallons – plastic tank with built-in fuel gauge CFM Output4,680Frame Construction All-steel, welded Impeller Construction4-blade, 3/8"-thick blades, all-steel, welded Impeller Mounting Tapered locking hub Impeller Diameter / Width20" / 6.5"Blower Housing Construction Removable back panel for easy impeller and wear plate access Blower Housing Width7.5"Blower Housing Wear Plates Standard: 1/4"-steel, replaceable Hose Specifications120" length, 12"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip Unit Mounting4" steel skid risers Discharge Tube Clear thermoplastic, 8" diameter Throttle Control Commercial-grade, all-steel mechanicals, plastic debris coverHeight75" (without skid mount attached)Weight675 lb
