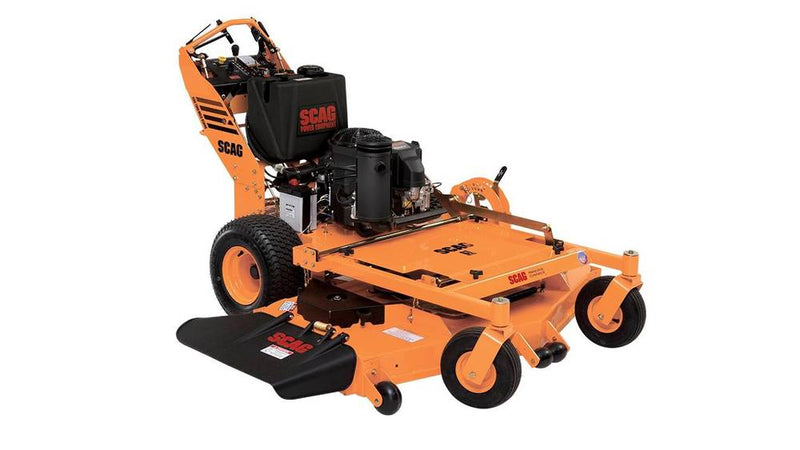

Scag Power Equipment SWZT36H-14FS

DESCRIPTION

36" Hero Cutter Deck, 14.5 HP Kawasaki® FS481V - recoil-start engine

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ergonomic Control System - Easy Operation, Hour After Hour: Ultra-comfortable, ergonomic controls not only contour to the natural angles of your extended arms, but are placed to keep your hands out of harm's way when mowing next to trees and bushes.
• Easy-Adjust Cutter-Deck Height System - No Tools Needed: Innovative, rider-style height-of-cut adjustment is quick and convenient.
• Heavy-Duty Drive System - Speeds Up To 7 MPH: Dual ZT-2800 transaxles utilize all-metal internal gears for long life and deliver smooth, infinitely variable speed and bi-directional control. Power comes from a 10 cc variable-displacement, seven-piston pump and a 16 cc fixed-displacement, seven-piston motor in each transaxle. Cooling fans help keep operating temperatures lower.
• Heavy-Duty Construction - Solid Design for Years of Dependable Service: Full commercial-grade construction ensures years of productive use.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Ease of Maintenance - More Uptime: Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZT simple, so you can be in the shop less and on the job more.
• Powerful and Efficient Engine Options - Reliable Power, Up To 22 HP: Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.

SPECIFICATIONS

• Description: 36" Hero Cutter Deck, 14.5 HP Kawasaki® FS481V - recoil-start engine
• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 18" x 6.5"-8" (36"); 18" x 8.5"-8" (48", 52" and 61")
• Caster Tires: 9" x 6.5"-4"
• Seat: n/a
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: Up to 7 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 48", 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1-BS03 (110 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 75.5"
• Height: 44"
• Tracking Width: 36.25"
• Width (chute down): 48.5"
• Width (chute in transport position): 37"
• Weight: 550 lb

ACCESSORIES

• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Chrome Wheel Covers
• Blade Buddy

PRODUCT SPECS

ENGINE

Engine ManufacturerKawasaki®Horse Power14.5 hpEngine TypeFS481V - recoil-start

GENERAL

TransmissionHydro-Gear ZT2800 TransaxleWheel Size18 in. x 6.5 in.-8 in.Fuel Capacity5.5 gal.

DECK

Deck Size36 in
