DESCRIPTION

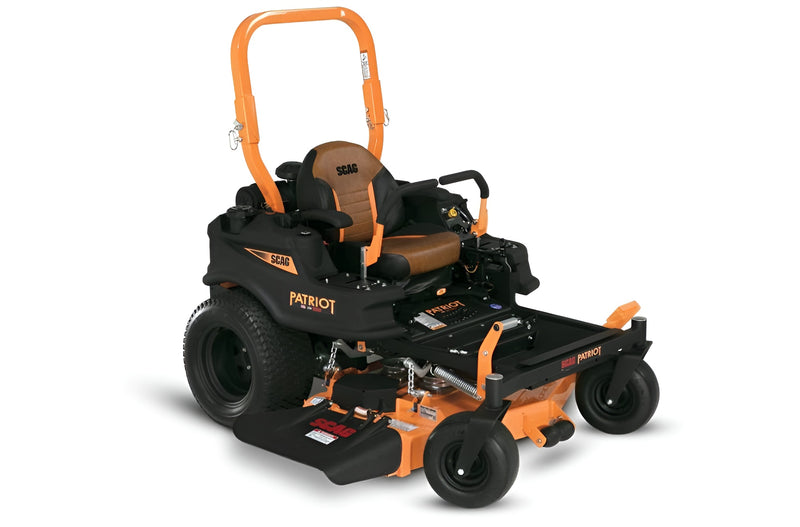

52" Hero Cutter Deck, 27 HP Briggs CXi Series™ - V-Twin

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
• Foot-Pedal Parking Brake - Stay in Control: Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
• Iso-Mounted Footplate - Crank Up the Comfort: Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• Hydro-Gear ZT-3100 / ZT-3400 Transaxles - Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52): The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Suspension Seat - Ride in Comfort: The torsion-spring suspension seat adjusts to each operator's weight, is contoured and features armrests, all to provide superior comfort.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 26 HP: Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Briggs CXi Series™ - V-Twin
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 22" x 10.5"-12" (52"); 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6"
• Seat: Torsion-spring suspension seat
• Drive System Type: Hydro-Gear ZT3100 Transaxle (52"); Hydro-Gear ZT3400 Transaxle (61")
• Pumps: ZT3100 Internal Pump: 10 cc (52"); ZT3400 Internal Pump: 12 cc (61")
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8.5 mph (52"); 10 mph (61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal
• Cutting Widths: 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT2 (108 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height (ROPS folded): 46.5"
• Height (ROPS up): 61"
• Weight: 907-911 lb

ACCESSORIES

• 2-Bag Spindle Driven Grass Catcher
• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Flat-Free Caster Tire
• Blade Buddy
