Description:

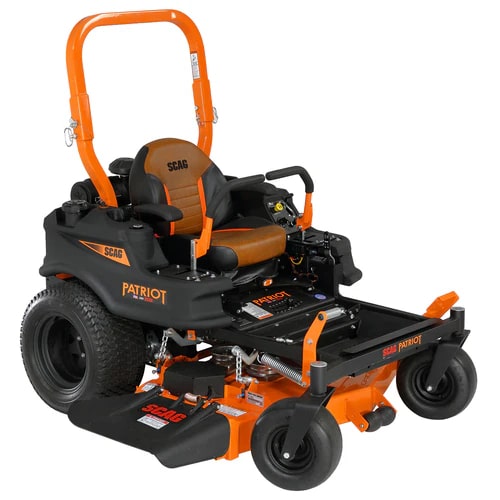

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

Features:

Strong, Adjustable Clutch for Long Life

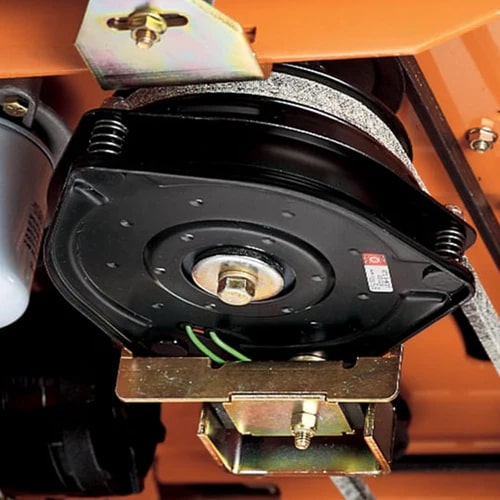

Ogura PTO Clutch Brake

• Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.
• All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).
• These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Specifications:

Dimensions

• Length: 79″
• Width (Chute Down): 73.5″
• Width (Chute in Transport Position): 62″
• Height (ROPS Folded): 47″
• Height (ROPS Up): 61″
• Weight: 952-956 lbs

General

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 24″ x 12″-12″
• Caster Tires: 13″ x 6.5″-6″

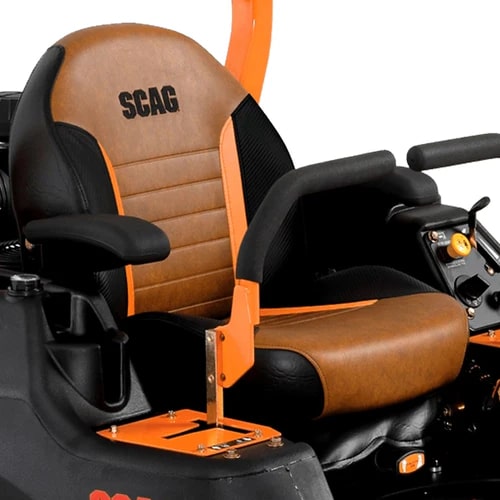

• Seat: Torsion-spring suspension seat

Drive System

• Drive System Type: Hydro-Gear ZT3400 Transaxle
• Pumps: ZT3400 Internal Pump: 12 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 10 mph
• Reverse Ground Speed: 5 mph

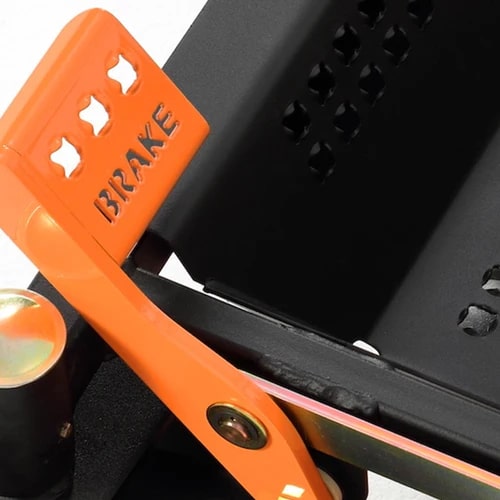

• Parking Brake: Foot-operated pedal

Cutting System

• Cutting Width: 61″
• Cutting Height: 1.5″ to 5″ in .25″ increments

Deck

• Spindles: Aluminum housing with sealed ball bearings
• Construction: Dual-plate cutter deck constructed of 2 steel plates with a reinforcement plate at cutter deck spindles
• Deck Lift: Foot-operated pedal

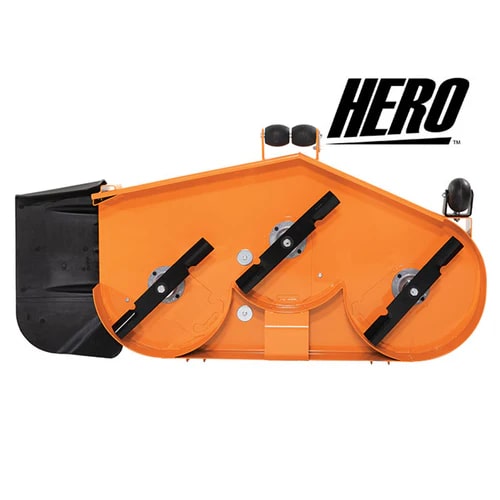

• Type: Hero Cutter Deck
• Blade Engagement: Ogura GT2 (108 ft-lb) with adjustable air-gap for extended life
