Description:

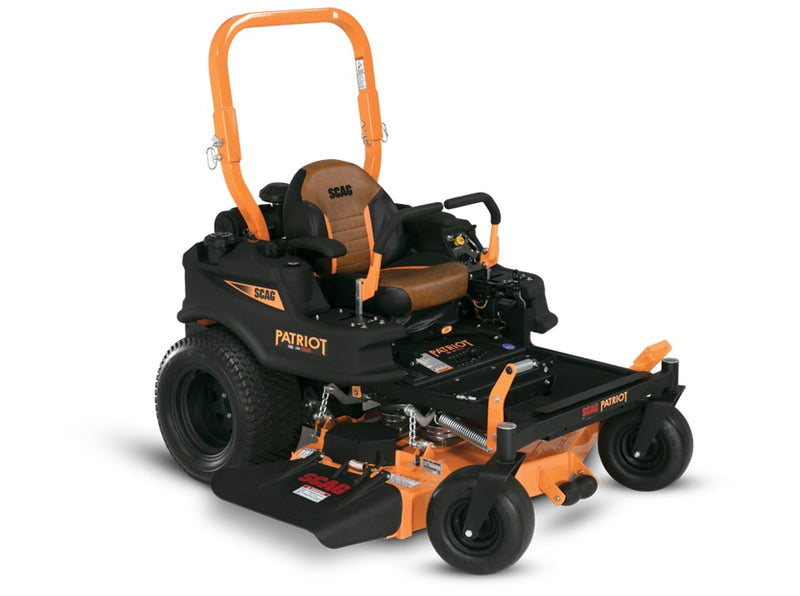

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.

Engine:

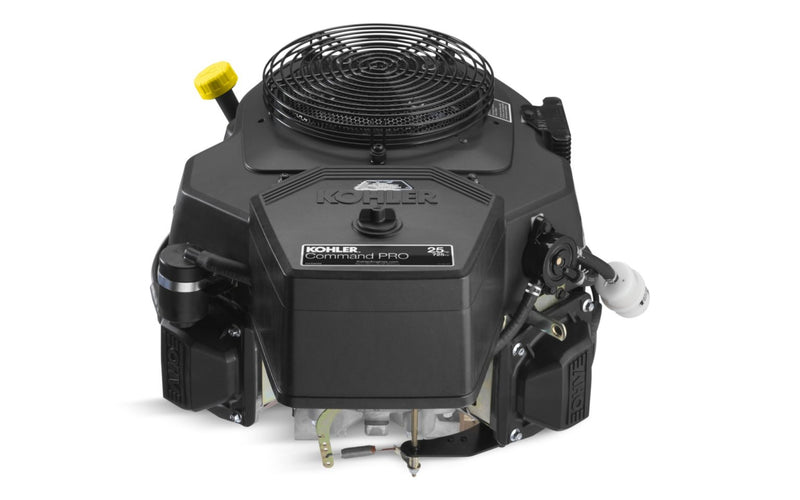

You work your tail off 12+ hours a day. It’s time to hold your engine to the same standard. With extended maintenance intervals and fuel-efficient operation, KOHLER Command PRO engines work as hard as you do.

Other features include:

• Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
• High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
• Extra-large sleeve bearings support heavy loads in commercial and industrial environments

Specifications:

Product: 61″ Patriot

Dimensions

• Length: 79″
• Width (Chute Down): 73.5″
• Width (Chute in Transport Position): 62″
• Height (ROPS Folded): 47″
• Height (ROPS Up): 61″
• Weight: 952–956 lb

General

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 24″ x 12″-12″
• Caster Tires: 13″ x 6.5″-6″
• Seat: Torsion-spring suspension seat

Drive System

• Type: Hydro-Gear ZT3400 Transaxle
• Pumps: ZT3400 Internal Pump, 12 cc
• Motors: Internal Motor, 16 cc
• Forward Ground Speed: 10 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Width: 61″
• Cutting Height: 1.5″ to 5″ in 0.25″ increments
• Type: Hero Cutter Deck
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement at spindle locations
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT2 (108 ft lb) with adjustable air-gap for extended life
