Description:

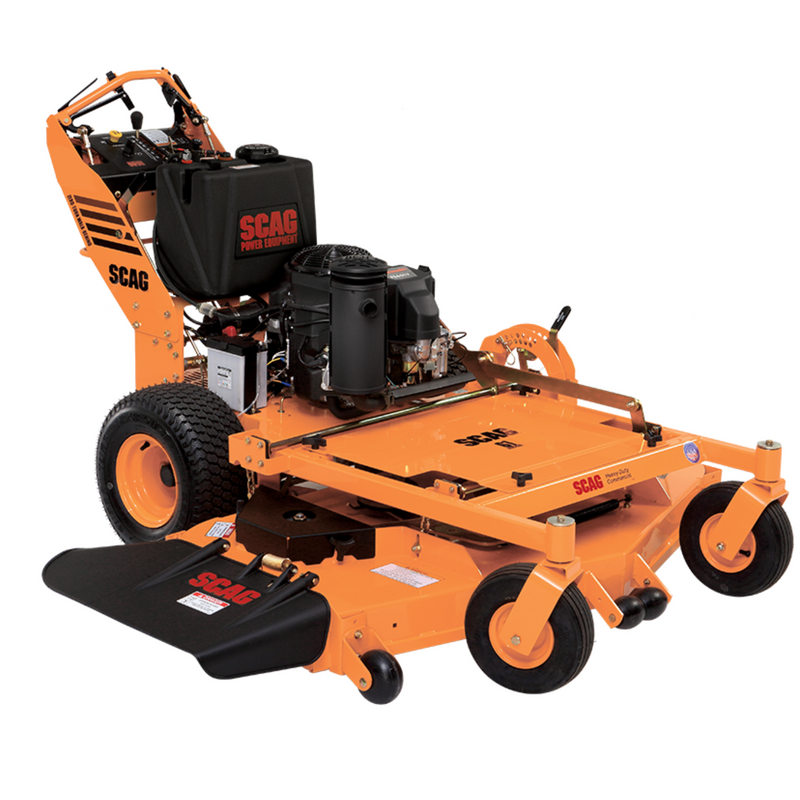

HYDRO-DRIVE WALK BEHIND

Get more jobs done from dawn to dusk in more comfort than ever before with the SWZT, featuring ultra-comfortable, ergonomic controls that contour to your hands. Equipped with our legendary toughness and durability, it is packed with features that deliver incredible power, smooth operation, and a long lifespan.

Features:

Ogura PTO Clutch Brake:

• Provides strong, adjustable clutch performance for starting and stopping the cutter deck.
• Adjustable air gap enhances longevity.

Deep, Fabricated, and Welded Cutter Decks:

• Heavy-duty Hero Cutter Deck construction.
• Deep design capable of handling large volumes of grass at higher speeds.
• Aluminum, sealed ball bearing blade-drive spindles ensure reliability season after season.

Easy-Adjust Cutter-Deck Height System:

• Tool-free height-of-cut adjustment for quick and convenient changes.

Heavy-Duty Construction:

• Full commercial-grade build ensures durability and longevity under demanding conditions.

Heavy-Duty Drive System:

• Dual ZT-2800 transaxles with all-metal internal gears for durability.
• Smooth, infinitely variable speed and bi-directional control.
• 10 cc variable-displacement, seven-piston pump and 16 cc fixed-displacement, seven-piston motor per transaxle.
• Cooling fans help maintain lower operating temperatures.

Ease of Maintenance:

• Easy-access design for the mower and engine area.
• Conveniently located grease Zerks for straightforward servicing.

Ergonomic Control System:

• Comfortable, ergonomic controls designed to fit natural arm angles.
• Placed to keep hands safe when mowing around obstacles like trees and bushes.

Powerful and Efficient Engine Options:

• Reliable Kawasaki® FS V-twin engines offering up to 22 HP.
• Designed for efficient power delivery.

Specification:

General:

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 18" x 8.5"-8"
• Caster Tires: 9" x 6.5"-4"
• Seat: Not applicable (n/a)

Drive System:

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: Up to 7 mph
• Reverse Ground Speed: 3 mph
• Parking Brake: Hand lever

Deck:

• Cutting Width: 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Hand lever
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1-BS03 (110 ft lb) - Adjustable air-gap for extended life

Dimensions:

• Length: 75.5"
• Height: 44"
• Tracking Width: 41.5"
• Width (chute down): 60.5"
• Width (chute in transport position): 49"
• Weight: 585 lb
