BBL400 Front End Loader — Bad Boy BBL400/BBL400C - Fits 4025H & 4035H Tractors
Front End Loader — Bad Boy BBL400/BBL400C - Fits 4025H & 4035H Tractors
Genuine Bad Boy front end loader built for the 4025H and 4035H compact tractors. Quick-attach bucket, 2,701 lb lift capacity, and available single-lever or joystick hydraulic control. Includes bucket, mounting frame kit, and hydraulic hoses.
Bullet Highlights
- Fits Bad Boy 4025H & 4035H tractors — factory-matched bolt-on mounting frame
- 1,225 kgf (2,701 lb) lift capacity to maximum height
- 1,660 kgf (3,660 lb) breakout force at ground level
- 104" max lift height to pivot pin, 46° dump angle, 35° rollback angle
- 62" bucket, 8.1 ft³ capacity with quick-attach system
- Choice of BBL400 (single-lever) or BBL400C (joystick) hydraulic control
- Float position for ground-contour following (great for grading, snow removal)
- Reinforced boom, grille guard, and parking stand included
- Color-coded quick-disconnect hydraulic couplers for fast mount/dismount
- Backed by Bad Boy's 1-year warranty
Full Description
Add serious loader capability to your Bad Boy 4025H or 4035H with the BBL400/BBL400C Front End Loader. Built for daily-use loader work — material handling, grading, scraping, snow removal, and yard cleanup — this loader pairs a reinforced boom and mounting frame with a quick-attach bucket system so you can swap implements fast.
Choose the BBL400 for traditional single-lever hydraulic control, or step up to the BBL400C for smoother, single-hand joystick operation. Both versions deliver 2,701 lb of lift capacity, 3,660 lb of breakout force, and a full float position for effortless ground-following on hard surfaces.
The kit includes the bucket, mounting frame assembly, boom assembly, hydraulic valve, hoses, grille guard, and parking stand/safety bar — everything needed to mount the loader to a compatible 4025H or 4035H tractor.
What's Included:
- Loader boom & quick-attach assembly
- 62" bucket (0.23 m³ / 8.1 ft³ capacity)
- Mounting frame kit (LH/RH frames, cross bar, grille guard)
- Loader control valve (single-lever or joystick, per model)
- Hydraulic hoses, couplers, and fittings
- Parking stand & safety bar
- Operator's Manual
Compatibility: Bad Boy 4025H and 4035H compact tractors only. Confirm tractor model before ordering.
Suggested Product Tags
Bad Boy, front end loader, BBL400, BBL400C, 4025H, 4035H, compact tractor loader, quick attach bucket, tractor attachment, joystick loader
Suggested Variant Options
| Variant | Description |
|---|---|
| BBL400 | Single-lever hydraulic control |
| BBL400C | Joystick hydraulic control |

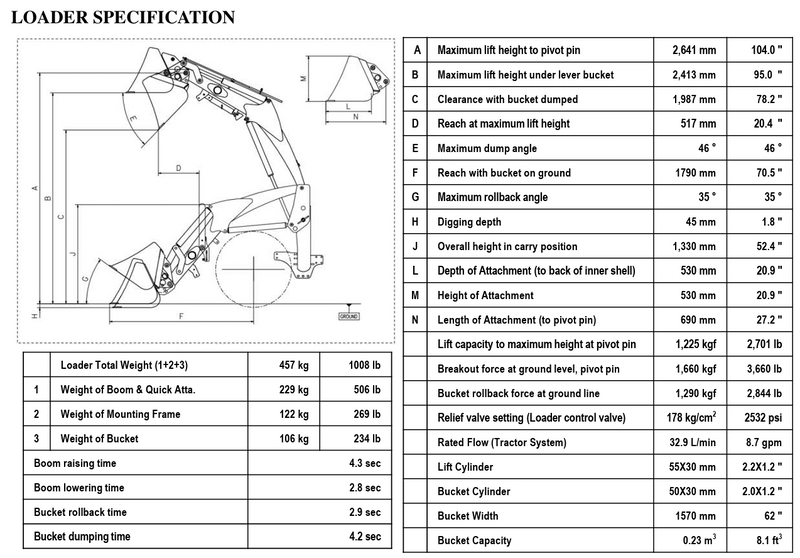

Specifications Table (for product page)
| Spec | Metric | Imperial |
|---|---|---|
| Max lift height (pivot pin) | 2,641 mm | 104.0 in |
| Max lift height (level bucket) | 2,413 mm | 95.0 in |
| Reach at max lift height | 517 mm | 20.4 in |
| Max dump angle | 46° | 46° |
| Max rollback angle | 35° | 35° |
| Digging depth | 45 mm | 1.8 in |
| Lift capacity (max height, pivot pin) | 1,225 kgf | 2,701 lb |
| Breakout force (ground level) | 1,660 kgf | 3,660 lb |
| Bucket rollback force | 1,290 kgf | 2,844 lb |
| Bucket width | 1,570 mm | 62 in |
| Bucket capacity | 0.23 m³ | 8.1 ft³ |
| Loader total weight | 457 kg | 1,008 lb |
| Rated hydraulic flow | 32.9 L/min | 8.7 gpm |
EBAY LISTING
eBay Title (80 characters max)
Bad Boy BBL400 Front End Loader w/ Bucket - Fits 4025H 4035H Tractor (69 characters — room to add "New" or "OEM" if applicable)
Alternate for BBL400C: Bad Boy BBL400C Joystick Front Loader w/ Bucket - Fits 4025H 4035H
Item Specifics (eBay required/recommended fields)
| Field | Value |
|---|---|
| Brand | Bad Boy |
| Type | Front End Loader |
| Model | BBL400 / BBL400C |
| Compatible Equipment Make | Bad Boy |
| Compatible Equipment Model | 4025H, 4035H |
| Bucket Width | 62 in |
| Bucket Capacity | 8.1 ft³ |
| Lift Capacity | 2,701 lb |
| Control Type | Single-lever (BBL400) / Joystick (BBL400C) |
| Condition | New (edit as applicable) |
eBay Description
Bad Boy BBL400/BBL400C Front End Loader
Genuine Bad Boy front end loader engineered specifically for the 4025H and 4035H compact tractors. This loader delivers 2,701 lb of lift capacity and 3,660 lb of breakout force, with a 62" bucket rated at 8.1 ft³.
Key Specs:
- Max lift height to pivot pin: 104"
- Max dump angle: 46° | Max rollback angle: 35°
- Digging depth: 1.8"
- Bucket capacity: 0.23 m³ (8.1 ft³)
- Loader weight: 1,008 lb
- Hydraulic flow: 8.7 gpm
Included: Bucket, boom & quick-attach assembly, mounting frame kit, hydraulic valve/hoses/couplers, grille guard, parking stand, and operator's manual.
Fitment: Bad Boy 4025H and 4035H tractors only — please verify your tractor model before purchasing. Message us with your tractor's serial number if you're unsure of fitment.
Specifications provided by manufacturer and subject to change. See the Bad Boy Operator's Manual for full safety and installation instructions.
Shipping Note (fill in before publishing)
Loader ships freight/LTL due to size and weight (~457 kg / 1,008 lb assembled — actual crated weight will differ). Confirm freight terms, lift-gate needs, and delivery address type (residential/commercial) with buyer before shipment.
Warranty Support
-
Coverage: Bad Boy offers a 1-year warranty from the original retail sale date on defects in materials or workmanship.
-
Genuine Parts: Backed by authorized Bad Boy dealerships using officially approved lubricants and genuine spare parts.
