DESCRIPTION

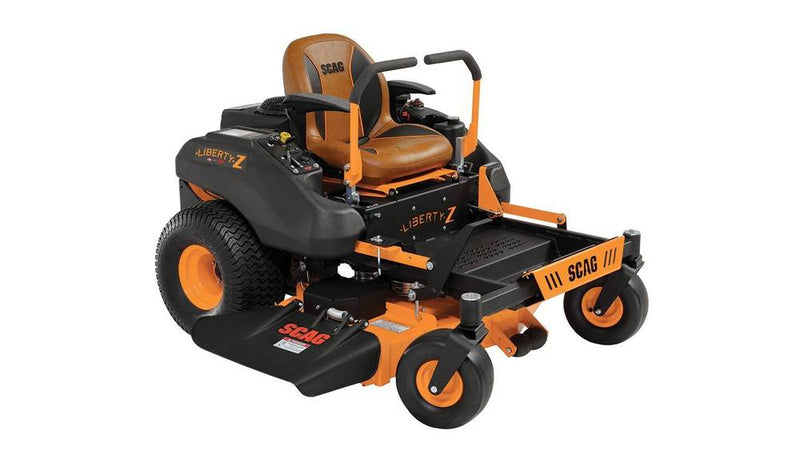

36" Hero Cutter Deck, 20 HP Briggs PXi Series™ - V-twin

FEATURES

• Proven Transaxles - Speeds Up To 7 MPH: The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36", 42", 52" and 61" models). The 48" model features proven Tuff Torq transaxles.
• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: Choose from a Kawasaki® FR or Kohler® 7000 Series engine.

SPECIFICATIONS

• Description: 36" Hero Cutter Deck, 20 HP Briggs PXi Series™ - V-twin
• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: 20" x 8"-10" (36"); 20" x 10"-8" (42", 48" and 52"); 20" x 10"-10" (61")
• Caster Tires: 11" x 4"-5" (36" and 42"); 11" x 6"-5" (48", 52" and 61")
• Seat: Padded with arm rests, adjustment forward and back (tools required); (no armrests on 36" and 42" models)
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 68.5"
• Width (chute down): 48.5"
• Width (chute in transport position): 37"
• Height: 40"
• Weight: 555 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch
