DESCRIPTION

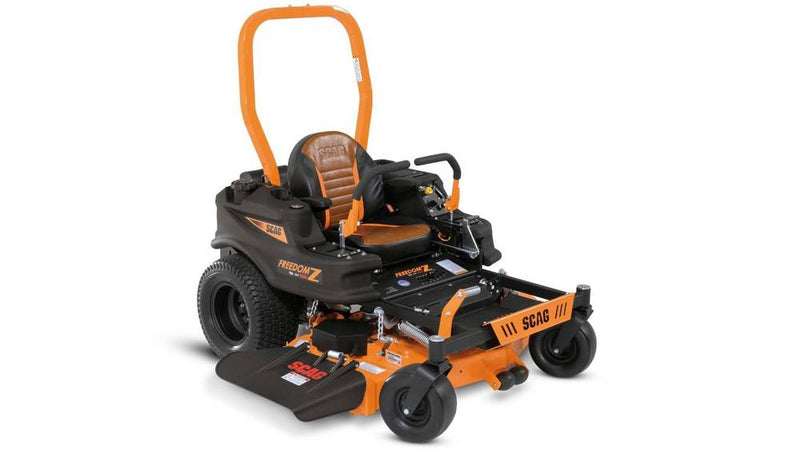

48" Hero Cutter Deck, 25 HP Briggs CXi Series™ - V-Twin

FEATURES

• Command perfection - Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Hydro-Gear ZT-2800 Transaxles - Speeds Up To 8 MPH: The ZT drive system's dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

SPECIFICATIONS

• Description: 48" Hero Cutter Deck, 25 HP Briggs CXi Series™ - V-Twin
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever
• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 60.5"
• Width (chute in transport position): 49"
• Height: 60"
• Weight: 745 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
