2019 Scag LBC15-SP170

DESCRIPTION

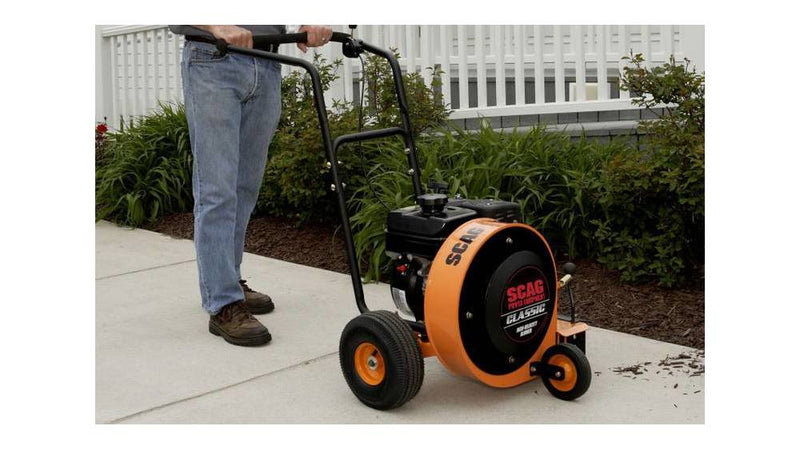

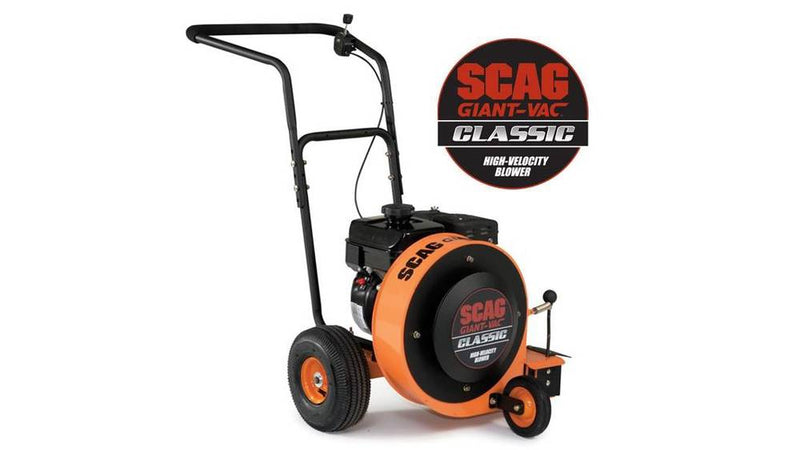

High-Velocity Leaf and Debris Blower

Tough jobs demand tough products and Scag Giant-Vac Leaf and Debris Blowers are ready to meet the challenge.

The Scag Giant-Vac Classic blower utilizes all-welded steel construction along with commercial grade quality throughout the entire product. This blower is built to last and perform.

Why rake when a powerful blower like this makes leaf gathering a cinch. Quickly clean leaves and debris off your yard, driveway or patio with this lightweight, yet powerful blower that won't fill your garage or break your pocketbook. Large air-filled rear tires and the thick comfort grip foam handles make pushing the Classic easy.

Every Scag Giant-Vac blower is built with pride in Mayville and West Bend, Wisconsin by hard-working Americans. If you are you looking for a quality American built product, look no further.

Contact your local Giant-Vac dealer for a demonstration today and experience the Scag difference for yourself.

SPECIFICATIONS

• Model: LBC15-SP170
• Engine: Subaru SP -170
• Horsepower: 5.7 hp
• Engine Frame Construction: All steel, welded 10 gauge
• Blower Housing Construction: All steel, welded 10 gauge front and back housing plates; 12 gauge skirt
• Blower Housing Width: 4.5 in.
• Impeller Construction: All steel, welded, 4-blade, dynamically balanced
• Impeller Mounting: Keyed crankshaft, bolt with thread-lock
• Impeller Diameter: 15 in.
• Impeller Width: 3.5 in.
• Vibration Control: 4-point rubber iso-mount system with thick, comfort foam handlebar grip
• Handle Height: Adjustable, 3-Position
• CFM Output: 1,392 CFM
• Axle: 3/4 in. diameter steel axle
• Rear Wheels: 4.10 X 3.5 in.
• Front Wheels: 1.5 in. x 6.0 in.
• Throttle Control: Commercial-grade, all steel mechanical, plastic debris cover
• Front / Side Discharge Control: Quick-Lever located at discharge
• Remote Discharge Angle Control: N/A
• Length: 43 in.
• Height: 40 in.
• Width: 27 in.
• Weight: 102 lb.
• Warranty: 1-year Commercial; 2-year Residential; 90-Day Rental

PRODUCT DETAILS

• Powerful, reliable and easy to start Subaru SP170 5.7 hp engine
• 4-blade, fabricated, high CFM, steel impeller
• 15" diameter impeller, 3.5" wide
• Impeller is dynamically balanced for smooth operation and optimum performance
• 10 gauge welded steel engine platform
• 10 gauge welded steel blower housing - front and rear housing plates
• 12 gauge blower housing skirt
• 4.5" wide blower housing
• Heavy-duty, tubular steel handles
• Front and side discharge for better control over debris dispersal
• Simple lever at discharge chute to select front or side blowing direction
• 11" air inlet to supply the blower with ample air volume
• Discharge opening (4" x 4 "; 16 square inches)
• Discharge positioned only 2" off the ground for better debris lifting.
• 2 degree blower tilt angle further enhances ability to get airflow under leaves without losing ground clearance.
• Four (4) iso-mounts on the handlebars to soak up vibration
• Handles feature a thick, comfortable foam grip
• Commercial grade throttle control mounted to the handlebars
• Heavy-duty 3/4" solid steel axles
• Powder coat paint for durability, protection and long life
• 1-year Limited Warranty for commercial use, 2-year Limited Warranty for residential use.
